STT
|
MÃ SẢN PHẨM
|
MÔ TẢ KỸ THUẬT
|
|
|
COMMUNICATION PROCESSOR
|
|
|
1
|
6GK1500-0AA10
|
12M BUS TERMINAL
FOR PROFIBUS,
TRANSMISSION RATE 9.6 KBIT/S
TO 12 MBIT/S,
CONNECTING CABLE 1.5 M
|
|
2
|
6GK1500-0AB00
|
RS 485 BUS TERMINAL
FOR PROFIBUS
TRANSMISSION RATE 9.6 KBIT/S
TO 1500 KBIT/S WITH
CONNECTING CABLE 3.0 M
|
|
3
|
6GK1500-0DA00
|
RS 485 BUS TERMINAL
FOR PROFIBUS
WITH FITTED PG INTERFACE AND
CONNECTING CABLE 1.5 M
|
|
4
|
6GK1500-0EA02
|
PB BUS CONNECTOR
WITH AXIAL CABLE OUTLET
F.INDUSTR. PC, SIMATIC OP, OLM;
TRANSMISSION RATE 12 MBIT/S;
TERMINATING RESISTOR WITH
SEPAR. FUNCTION,
METAL HOUSING
|
|
5
|
6GK1500-0FC10
|
PB FC RS 485 PLUG
180, PB-PLUG WITH FASTCONNECT
CONNECTOR AND AXIAL CABLE-
OUTLET F. INDUSTRY PC, SIMATIC
OP, OLM, TRANSMISSION RATE:
12 MBIT/S, TERMINATING RESISTOR
WITH SERAR. FUNCTION, PLASTIC
HOUSING
|
|
6
|
6GK1161-3AA01
|

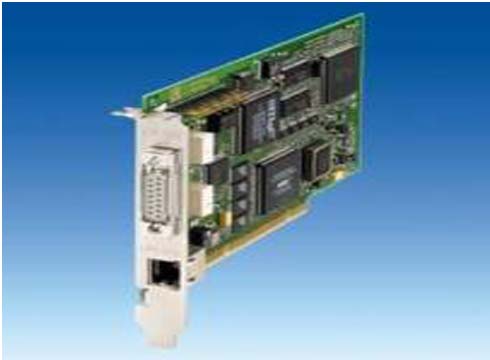

COMMUNICATION PROCESSOR CP 1613
A2 PCI CARD (32BIT;33MHZ/66MHZ;
3.3V/5V UNIVERSAL KEY)
FOR CONNECTION TO
IND. ETHERNET (10/100MBIT/S)
WITH ITP AND RJ 45 PORT
VIA S7-1613
AND S7-REDCONNECT.
SUPPORT FOR OPERATING SYSTEM
SEE SIMATIC NET SW
2003 SERVER
|
|
7
|
6GK1561-1AA01
|
COMMUNICATION PROCESSOR CP 5611
A2 PCI-CARD (32 BIT; 3.3/5V;33/
66 MHZ) FOR CONN. TO
PG OR PC WITH PCI-BUS
TO PROFIBUS OR MPI
(NO WIN9X-SUPPORT!)
|
|
8
|
6GK1561-1AM01
|
COMMUNICATION PROCESSOR CP 5611
_MPI, CONSISTING OF PCI CARD CP 5611
A2 (32BIT; 3.3/5V; 33/66 MHZ)
FOR CONNECTING PG/PC WITH
PCI-BUS TO PROFIBUS OR MPI
INCL. MPI CABLE, 5M
1X 6GK1561-1AA01
1X 6ES7901-0BF00-0AA0
(NO WIN9X-SUPPORT!)
|
|
9
|
6GK1901-1BB10-2AA0
|
IE FC RJ45 PLUG 180
2X2, RJ45 PLUG CONNECTOR
(10/100MBIT/S) W. RUGGED
METAL HOUSING AND FC CONNECTING
METHOD, FOR IE FC CABLE 2X2
180 DGR CABLE OUTLET
1 PACK = 1 PCS
|
|
10
|
6GK7243-1EX00-0XE0
|
SIMATIC NET, CP 243-1
COMMUNICATIONS PROCESSOR FOR
CONNECTION OF SIMATIC S7-22X
TO INDUSTRIAL ETHERNET
|
|
11
|
6GK7243-1GX00-0XE0
|
SIMATIC NET, CP 243-1IT
COMMUNICATIONS PROCESSOR FOR
CONNECTION OF SIMATIC S7-22X
TO INDUSTRIAL ETHERNET
FTP CLIENT COMMUNICATION,
HTTP SERVER, FTP SERVER
8 MB FLASH FILE SYSTEM
E-MAIL CLIENT
|
|
12
|
6GK7342-5DA02-0XE0
|
SIMATIC NET, CP 342-5
COMMUNICATIONS PROCESSOR FOR
CONNECTING SIMATIC S7-300 TO
PROFIBUS, DP, S5-COMPATIBLE
PG/OP AND S7 COMMUNICATION
|
|
13
|
6GK7342-5DF00-0XE0
|
SIMATIC NET, CP 342-5 FO
COMMUNICATIONS PROCESSOR FOR
CONNECTING SIMATIC S7-300 TO
PROFIBUS, DP, S5-COMPATIBLE
PG/OP AND S7 COMMUNICATION
|
|
14
|
6GK7343-1CX10-0XE0
|
SIMATIC NET, CP 343-1 LEAN
COMMUNICATION PROCESSOR FOR
CONNECTING SIMATIC S7-300 TO
IND. ETHERNET VIA TCP/IP AND
UDP, MULTICAST, SEND/RECEIVE
W. AND W/O RFC1006, FETCH/
WRITE, S7-COMMUNICATION(SERVER)
PROFINET IO-DEVICE
INTEGRATED 2-PORT SWITCH
ERTEC 200, BG EXCHANGE W/O PG,
SNMP DIAGNOSTICS, INITIALIZ.
VIA LAN,
2 X RJ45 CONNECT. FOR LAN WITH
10/100 MBIT/S
|
|
15
|
6GK7343-1EX30-0XE0
|
SIMATIC NET, CP 343-1
COMMUNIKATIONS PROCESSOR FOR
CONNECTING SIMATIC S7-300 TO
IND. ETHERNET VIA ISO AND
TCP/IP, PROFINET IO-CONTROLLER
OR PROFINET IO-DEVICE,
INTEGR. 2-PORT SWITCH ERTEC200
S7-COMM., FETCH/WRITE, SEND/RCV
W. AND W/O RFC1006,MULTICAST
DHCP, NTC-CPU SYNC, DIAGNOSTIC,
INITIALIZATION VIA LAN,
2 X RJ45 CONNECT. FOR LAN WITH
10/100 MBIT/S
|
|
16
|
6GK7343-1EX21-0XE0
|
SIMATIC NET, CP 343-1
COMMUNICATIONS PROCESSOR
CONNECTING SIMATIC S7-300 TO
IND. ETHERNET VIA PROFINET IO,
CONTROLLER,ISO, TCP/IP AND UDP,
AND WITHOUT RFC,
1006 DIAGNOSTIC EXPANSIONS,
MULTICAST, LOADABLE
COMMUNICATION BLOCKS
SNMP DIAGNOSIS, INITIALIZATION
VIA LAN, DHCP, NTP-CPU SYNC,
10/100 MBIT, ONLY RJ45
CONNECTION
|
|
17
|
6GK7343-1GX30-0XE0
|
SIMATIC NET, CP 343-1 ADVANCED
COMMUNICATIONS PROCESSOR FOR
CONNECTING SIMATIC S7-300CPU
TO IND.ETHERNET: PROFINET IO-
CONTROLLER OR/AND IO-DEVICE
RT AND IRT, MRP, PROFINET CBA
TCP/IP,ISO,UDP,S7-COM,S5-COMP.
COM.(SEND/RECEIVE)W.FETCH/WRITE
WIT AND W/O RFC 1006,MULTICAST
DIAGNOSTIC EXPANSIONS,SNMP,DHCP
FTP CLIENT/SERVER,E-MAIL,
DATA STORAGE ON C-PLUG,
PROFINET-SS 2X RJ45(10/100MBIT)
SWITCHED, GIGABIT-SS 1X RJ45
(10/100/1000 MBIT)
|
|
18
|
6GK7343-5FA01-0XE0
|
SIMATIC NET, CP 343-5
COMMUNICATIONS PROCESSOR FOR
CONNECTING SIMATIC S7-300
TO PROFIBUS, FMS, S5-COMPATIBLE
PG/OP AND S7 COMMUNICATION
12 MBAUD, SINGLE-WIDTH
|
|
19
|
6GK7443-1EX20-0XE0
|
SIMATIC NET, CP 443-1
COMMUNICATIONS PROCESSOR FOR
CONNECTING SIMATIC S7-400 TO
INDUST. ETHERN. VIA ISO, TCP/IP
AND UDP, S7-COMM., FETCH/WRITE,
SEND/RCV WITH AND W/O RFC1006,
MULTICAST, PROFINET IO-
CONTROLLER, DHCP, SNMP V2,
WEB-, DIAGNOS., INITIALISATION
VIA LAN, ACCESS PROTECTION VIA
IP-ACCESS LIST, INTEGRATED
REAL-TIME SWITCH ERTEC 400,
2XRJ45 CONNECT. FOR LAN
WITH 10/100 MBIT/S
|
|
20
|
6GK7443-1GX20-0XE0
|
SIMATIC NET, CP 443-1 ADVANCED
COMMUNICATIONS PROCESSOR FOR
CONNECTING SIMATIC S7-400CPU
TO INDUSTRIAL ETHERNET:
PROFINET IO-CONTROLLER WITH RT
AND IRT, MRP, PROFINET CBA
TCP/IP,ISO,UDP,S7-COM,S5-COMP.
COM.(SEND/RECEIVE)W.FETCH/WRITE
WITH AND W/O RFC 1006,MULTICAST
DIAGNOSTIC EXPANSIONS,SNMP,DHCP
FTP CLIENT/SERVER,E-MAIL,
DATA STORAGE ON C-PLUG,
PROFINET-SS 4XRJ45(10/100 MBIT)
SWITCHED, GIGABIT-SS 1XRJ45
(10/100/1000 MBIT)
|
|
21
|
6GK7443-5DX04-0XE0
|
SIMATIC NET, CP 443-5 EXTENDED
COMMUNICATION PROCESSOR FOR
F. CONNECTION OF SIMATIC S7-400
TO PROFIBUS, DP, S5 COMPATIBLE
PG/OP AND S7 COMMUNICATION
|
|
22
|
6GK7443-5FX02-0XE0
|
SIMATIC NET, CP 443-5 BASIC
COMMUNICATION PROCESSOR FOR
F. CONNECTION OF SIMATIC S7-400
TO PROFIBUS, FMS, S5 COMPATIBLE
PG/OP AND S7 COMMUNICATION
|
|
|
|
|
|
